Soft x-ray (SXR) Prototype Diagnostic

Results

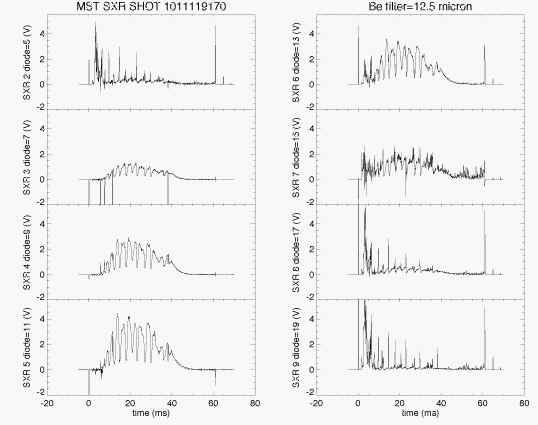

First measurements with plasma, Ip=250kA. The signals have a large pick-up noise but, once resampled to 10kHz, are quite reasonable. So the system works!

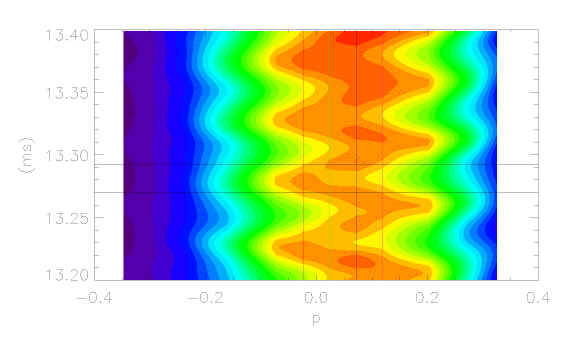

400 kA PPCD shot, 1020228082, example of a rotating m=1 structure in the plasma core.

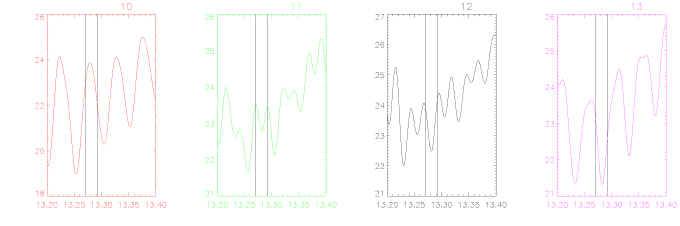

The same shot as before, here are shown the time evolution of the central chords.
